Near miss – Grating dislodged and fell, leading to crewman slipping
- Safety Flash
- Published on 5 October 2017
- Generated on 22 December 2024
- IMCA SF 24/17
- 2 minute read
During flow-line installation work on an oil platform, a section of plastic grating became dislodged as a crewman stepped on it.
What happened?
The incident occurred when crew were making up a flange bolted connection, on a hang off platform (HOP).
A member of the rigging team slipped into the gap but did not fall further, and was uninjured.
The piece of grating, which measured 90 cm x 30 cm and weighed 5 kg, fell into the sea.

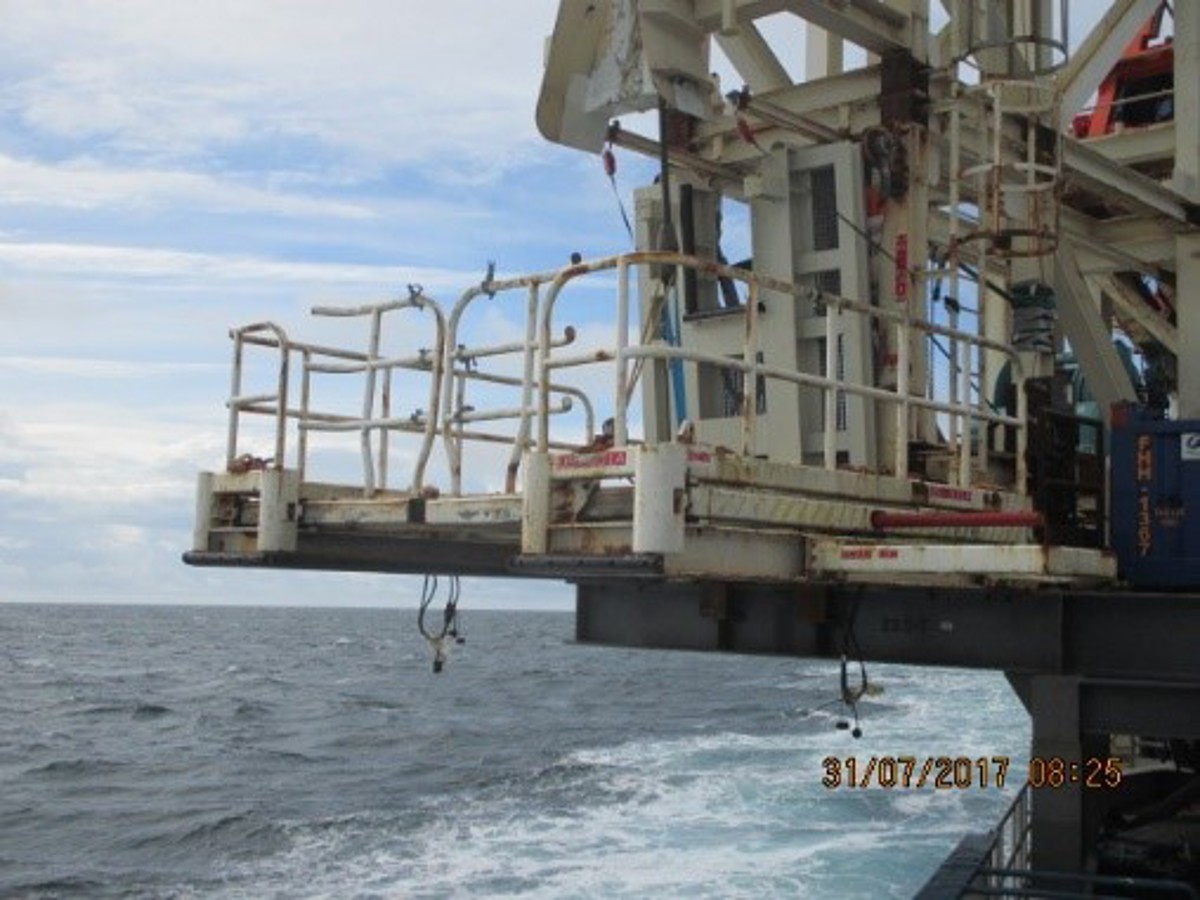

hang off platform (HOP)

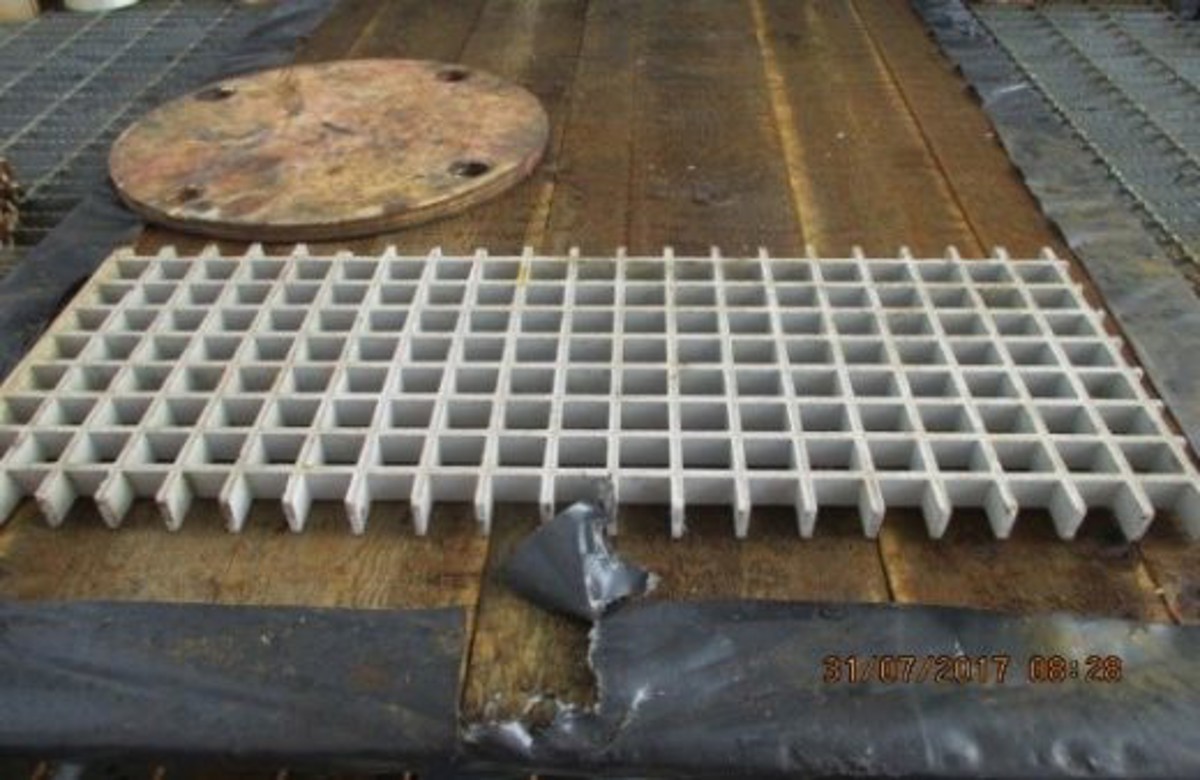

piece of grating that dropped

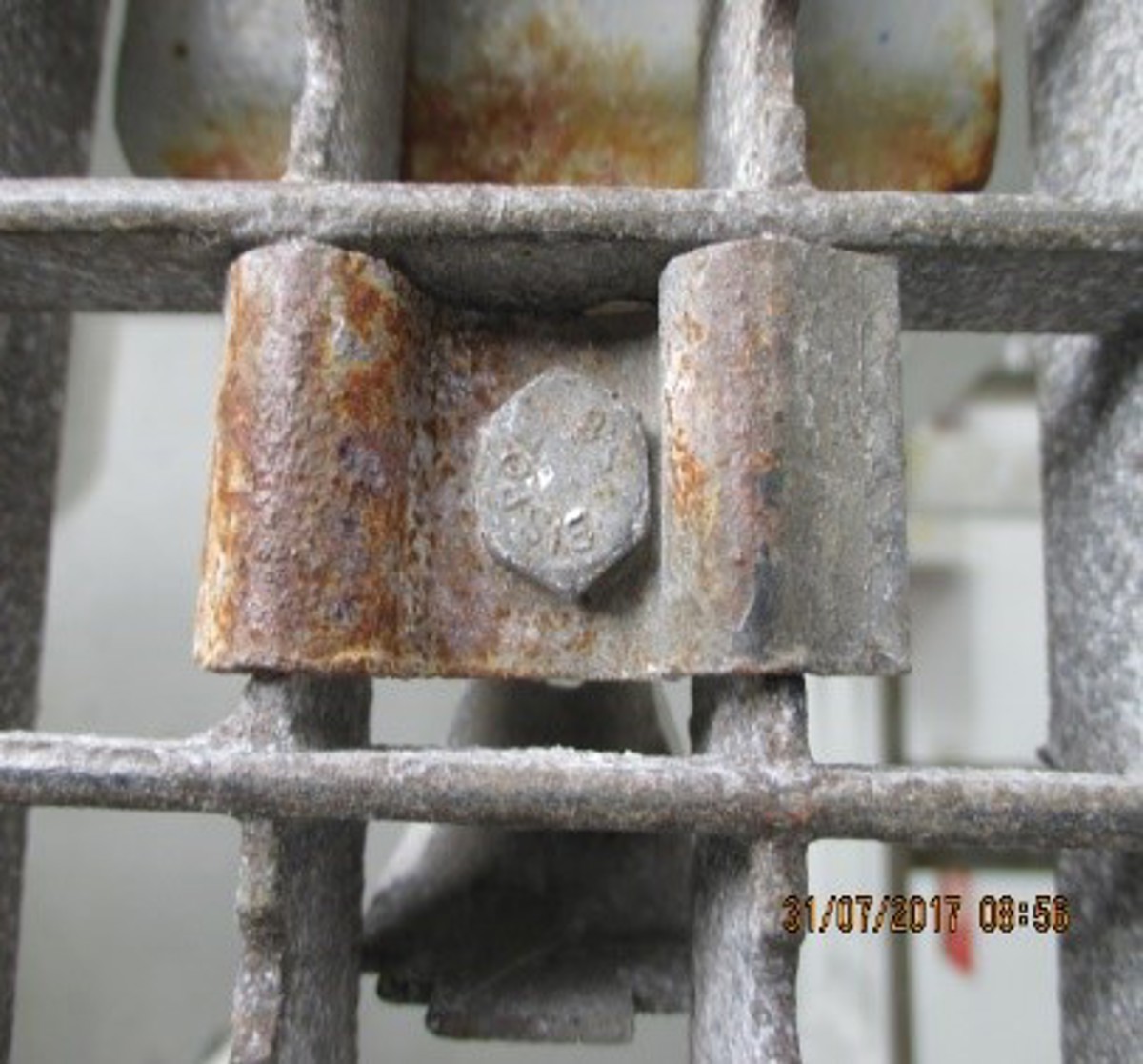

grating clip used for securing
What went wrong? What were the causes?
It was assumed that the grating securing clips had come loose and fallen off, due to the flexing of the entire HOP during operations.
There was no potential for persons to slip fully through the gap created by the dislodged grating due to the size of the gap.
What lessons were learnt? What actions were taken?
- The rigging team held a time out for safety, then made a proper check of the security of all areas of the HOP.
- Before starting work again, the grating section was replaced and secured in place.
- The team members working on the flange were wearing full fall-arrest equipment and were clipped on.
- The surrounding area covering the HOP was completely barriered off.
A subsequent ROV sweep grid survey was completed, and the grating section was located and recovered to deck by ROV.
Members may wish to review the following incidents:
- Fatality: fall from height
- Near-miss: Missing grating on platform in fuel tank
- Falling object – Grating fell onto pipe deck
