Hyperbaric lifeboat emergency lifting chain link failure
- Safety Flash
- Published on 10 August 2016
- Generated on 26 December 2024
- IMCA SF 21/16
- 2 minute read
A member has reported an incident in which a chain parted during the recovery of a hyperbaric lifeboat (HLB) during ‘routine’ testing and maintenance.
What happened?
On recovery of the HLB the vessel crane started the lift and when the weight on the crane load readout was approximately 7 tonnes, one leg of the chain set parted when two links split through their link ends. Since the HLB had not yet been fully lifted out of the water the drop was minimal and the parted chain dropped back onto the top of the HLB. There was no damage to the HLB shell due to the soft covering over the chain links.

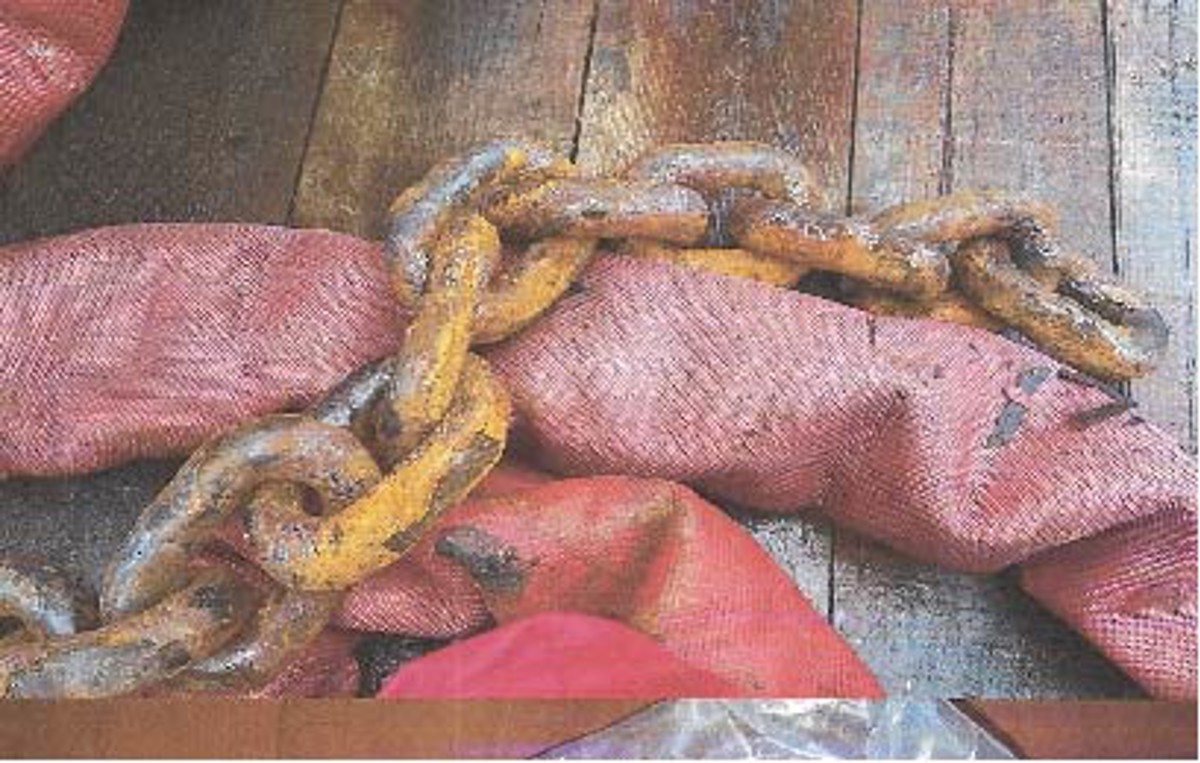

Chain link and protective cover

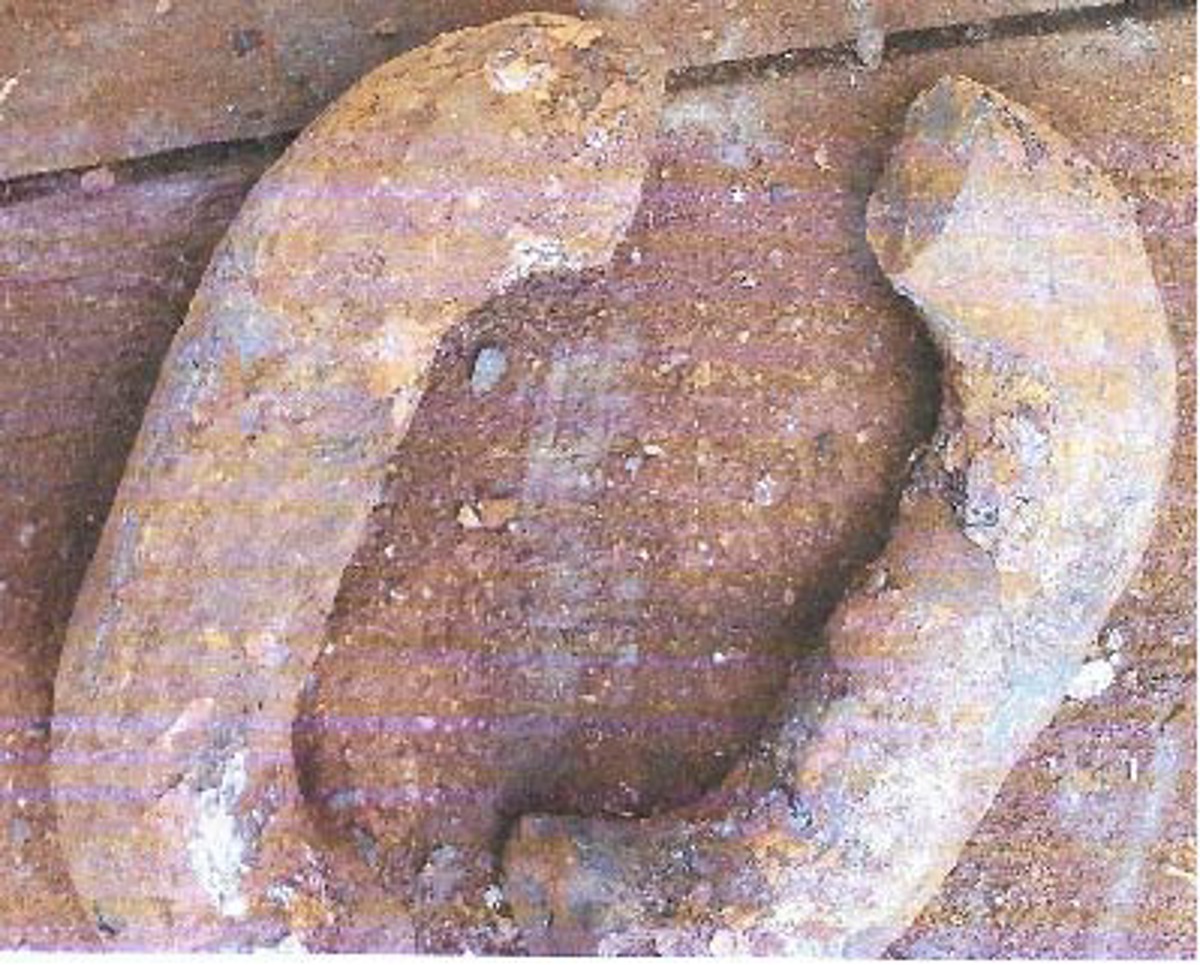

Chain link failure

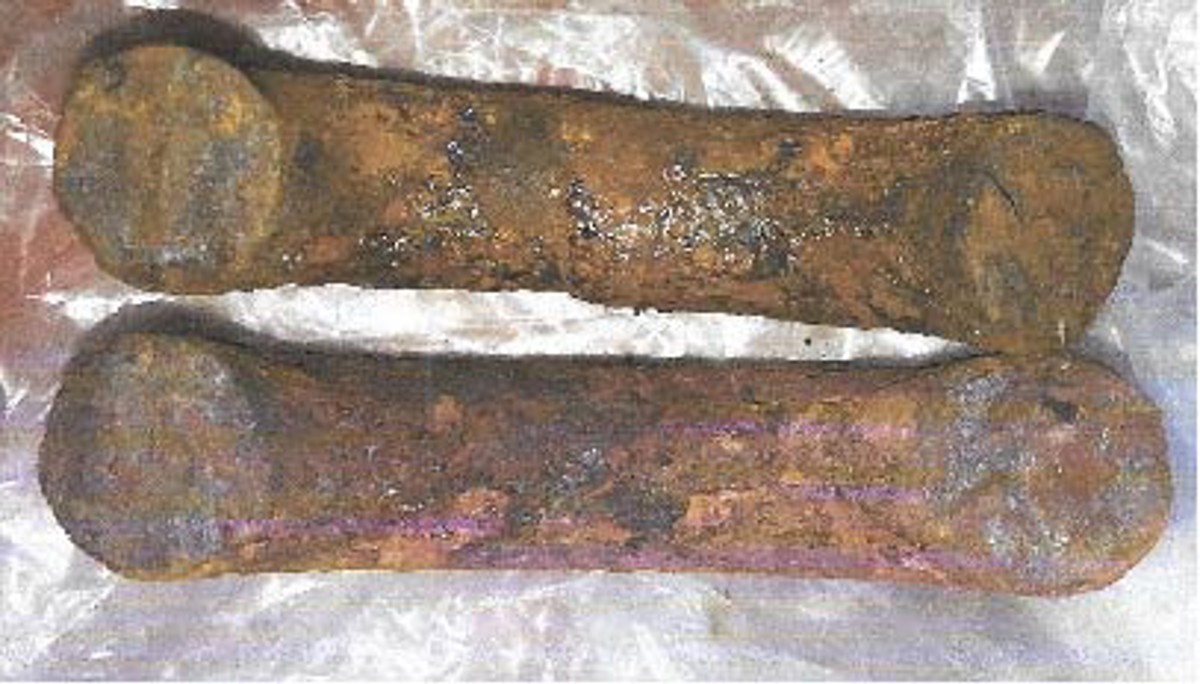

Corrosion on cross section of failure zones
Our member’s investigation noted the following:
- Periodic inspections of the chain were in date and on record.
- Significant corrosion was discovered on the chain, raising concern about the pass/fail criteria used on the previous visual inspection.
- The cross section of the failure locations revealed corrosion indicating the presence of cracks prior to failure.
- The protective covering is a potential obstruction to thorough and effective inspection of the individual chain links.
- Environmental conditions at the time of the incident were stable and could not have contributed to high impact loads.
- The chain set has been returned to the manufacturer for mechanical testing and analysis. The results of this testing are pending.
Our member took the following immediate corrective actions:
- Stopped the job.
- Lifted the HLB back in its original position using the davit system.
- The chain set was removed and quarantined.
The following remedial actions were suggested by our member:
- All HLB lifting chain sets should be re-inspected by full removal of the protective covering to gain complete access to each link for a thorough visual inspection.
- The inspection should be conducted by an authorised authority against an acceptable industry standard of acceptance criteria with emphasis on wear, cracks, pitting and corrosion.
NB Further remedial actions pending the outcome of the manufacturer’s investigation may be available in due course.
