Sheave became detached during lifting operations
- Safety Flash
- Published on 21 June 2023
- Generated on 26 December 2024
- IMCA SF 15/23
- 2 minute read

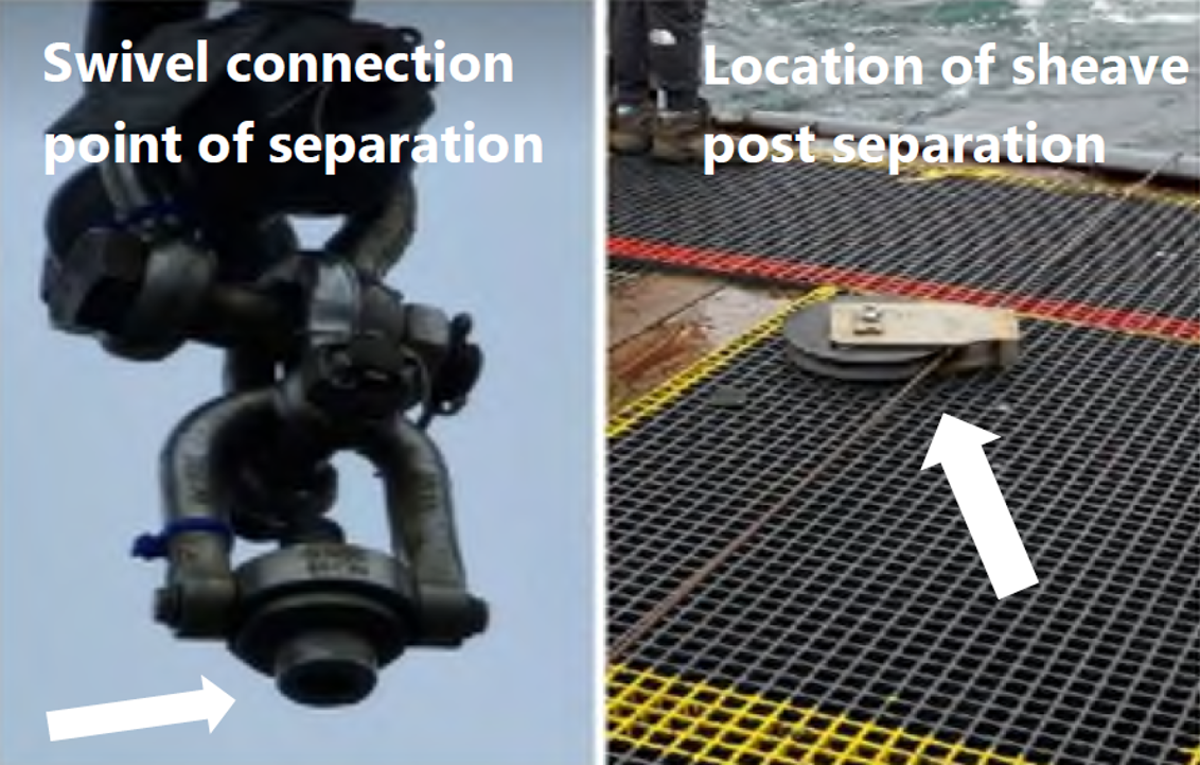

During recovery operations of marine geophysical sensors, a sheave parted from a swivel connection on the A-frame.
What happened?
The sheave fell approximately 6 m to the deck below. No personnel were underneath the sheave - however, had the sheave struck an individual, it could have caused serious injury.
What went wrong?
Investigation revealed that:
- Installation of the sheave and introduction of new components had not been subject to a documented management of change.
- There were no written installation instructions provided with the sheave, with nothing detailing the configuration of the sheave to the swivel connection.
- The person installing the sheave relied on verbal instructions and an incorrect understanding of the previous installation.
- When the sheave was installed, the secondary retention (securing sling) was considered unnecessary and removed – there was no independent verification / quality check (QC) carried out.
- Prior to the incident, there had been numerous opportunities including one by an independent (third party) inspector to identify that the sheave was incorrectly installed.
- There was inadequate development and control of the lifting equipment records / register.
Actions
- Equipment
- Design changes were made after the incident to remove the swivel connection and replace it with a pad eye thereby reducing the potential for incorrect connection.

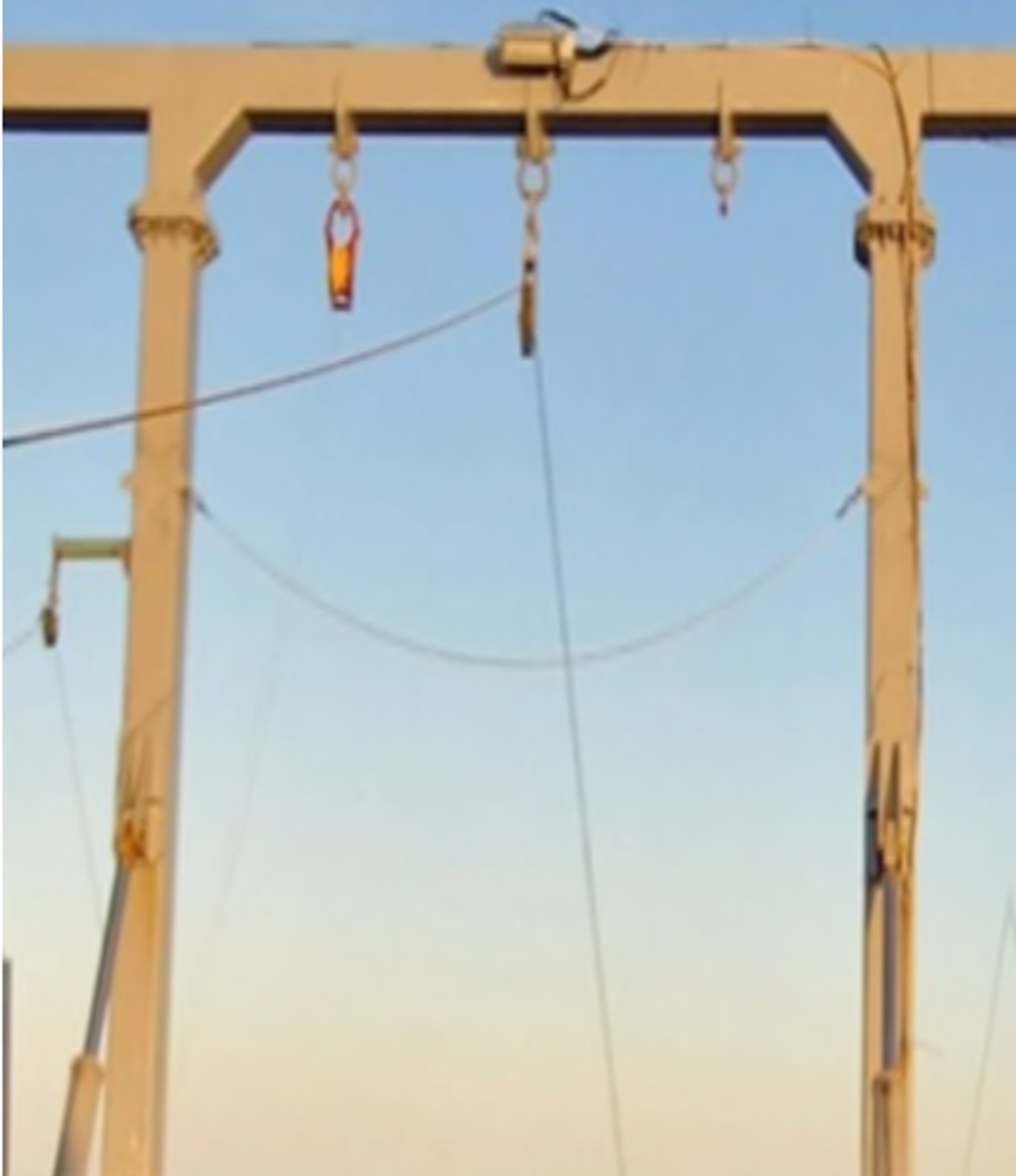

- Secondary securing slings were fitted to all sheaves. Additionally, a cable was installed between the A-frame legs to act as another barrier should primary and secondary retention fail. The sensor tow wire straddles this cable, so if the sheave falls it slides down the tow cable rather than drop (see image below).
- Monitoring, tracking, inspecting, and provision of guidance for lifting equipment, accessories and rigging was improved.
- Design changes were made after the incident to remove the swivel connection and replace it with a pad eye thereby reducing the potential for incorrect connection.
- Procedures
- Written installation and maintenance instructions should be provided with all equipment/sheaves.
Our Member held a safety stand down wherein there was discussion relating to the need for and importance of:
- properly managing lifting equipment, accessories, and associated records / registers
- carrying out post-installation quality assurance checks
- installation of secondary securing – designed to restrain the item should the primary fixing fail
- personnel remaining out of the line of fire
- following established procedures and work instructions – where none exist, or if there is any doubt, speak up and request the required information.
