Line of fire/pinch point – fractured fingers
- Safety Flash
- Published on 3 May 2019
- Generated on 26 December 2024
- IMCA SF 09/19
- 2 minute read
A crewman suffered a pinch point injury resulting in two fractured fingers and a fingertip amputation.
What happened?

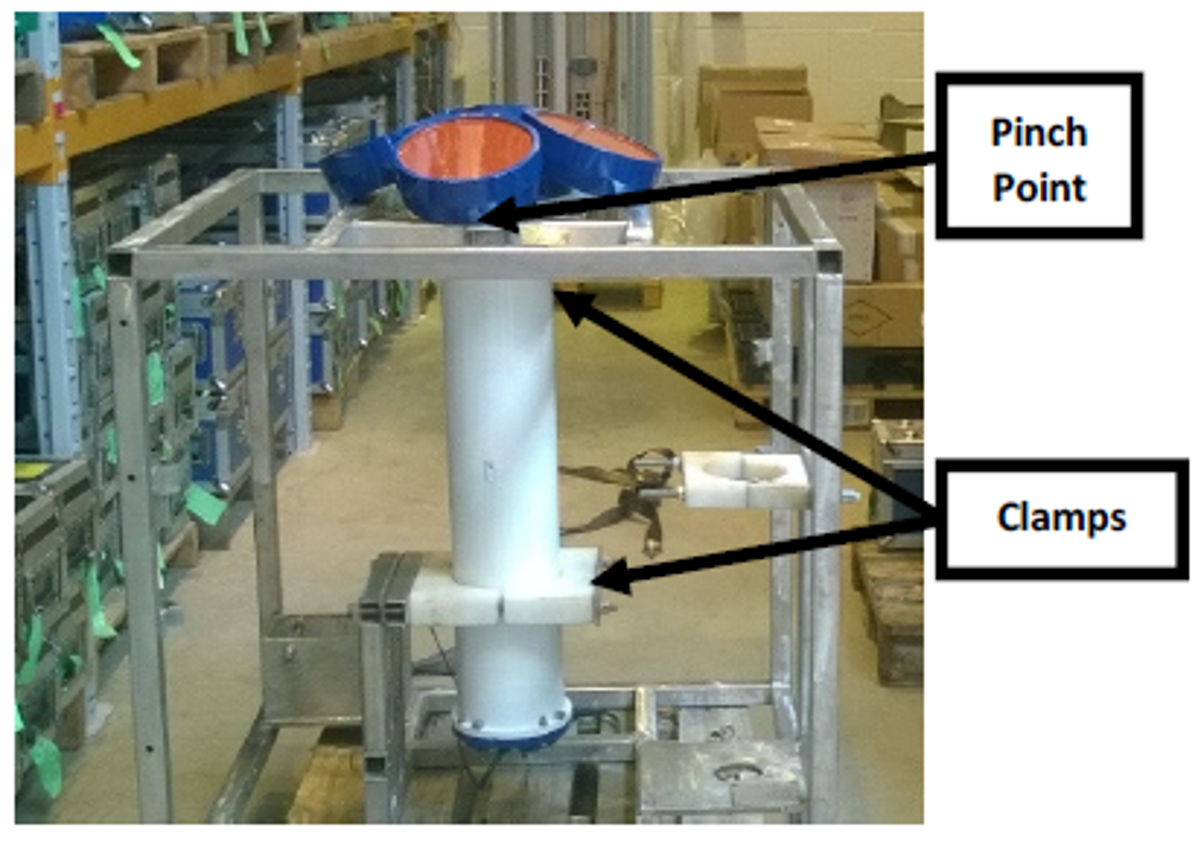

The incident occurred when a piece of equipment weighing 86 kg was being installed by warehouse personnel into a seabed frame. The equipment was lowered into the frame using a forklift with a lifting attachment, but before the securing clamps were fully tightened, the lifting strops were removed.
It was then observed that the equipment was not aligned correctly, so it was manually turned in the frame. Whilst turning the equipment it slipped through the hand tightened clamps, crushing the injured person’s fingers between the equipment and the frame.
What went wrong? What were the causes?
Our member’s investigation found:
- There was no risk assessment or work instruction in place for this task. This was found to be the case for many of the routine tasks carried out in the warehouse/workshop.
- The warehouse team had not carried out this task before without supervision.
- There were insufficient engineering controls to prevent the incident from occurring.
What actions were taken?
- A straightforward modification to the seabed frame engineered out the pinch point. When designing equipment, it is vital that safety during installation, maintenance and transportation is considered, as well as operational safety.
- Review workshop, warehouse and yard activities to ensure that suitable risk assessments are in place and used:
- Seemingly routine activities should be adequately supervised and subject to suitable and sufficient task risk assessment; in this instance, no risk assessment or instruction was in place covering the task.
- Previously the task had always been supervised by a senior engineer, but on this occasion, the workshop personnel carried it out unsupervised.
- Seemingly routine activities should be adequately supervised and subject to suitable and sufficient task risk assessment; in this instance, no risk assessment or instruction was in place covering the task.
