Hazard hunt: Fire dampers and fixed firefighting systems

  • Safety Flash
  • Published on 12 March 2019
  • Generated on 3 April 2025
  • IMCA SF 04/19
  • 1 minute read

A member reports four recent Port State Control detentions for its vessels, two of which related to fire safety, fire dampers and fixed firefighting equipment

What happened?

In one incident, the fire dampers for four engine room ventilation fans were found to be faulty.

On the same vessel, the manual isolation valve for the low-pressure CO2 firefighting system was found to be in a closed position.

Crew would not have been able to deploy the CO2 firefighting system into protected spaces from the remote location.

Additionally, the wrench used to open the manual isolation valve was not present in the local control area.

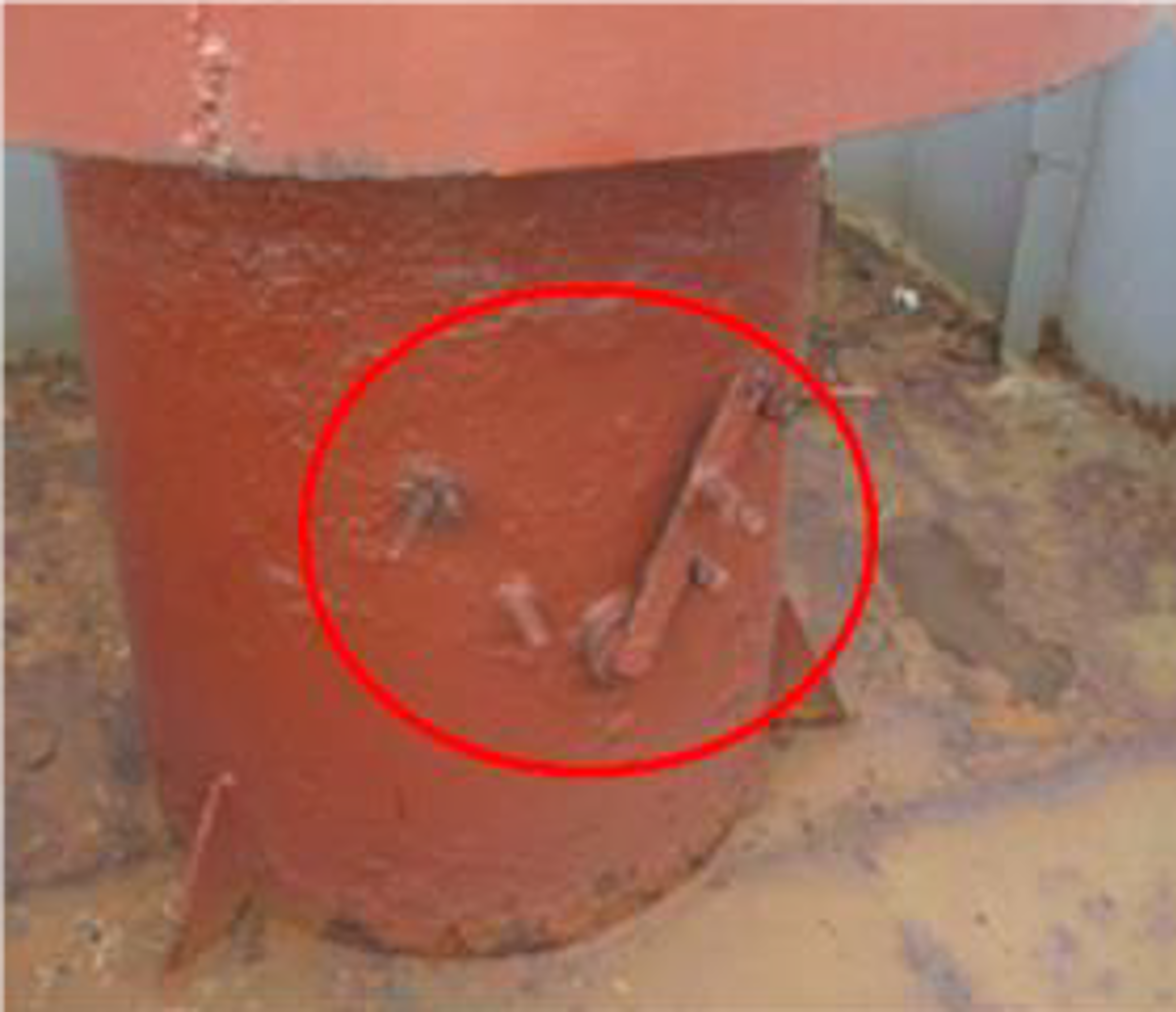

corroded engine room fire damper

corroded engine room fire damper

no 'open' or 'close' markings

no 'open' or 'close' markings

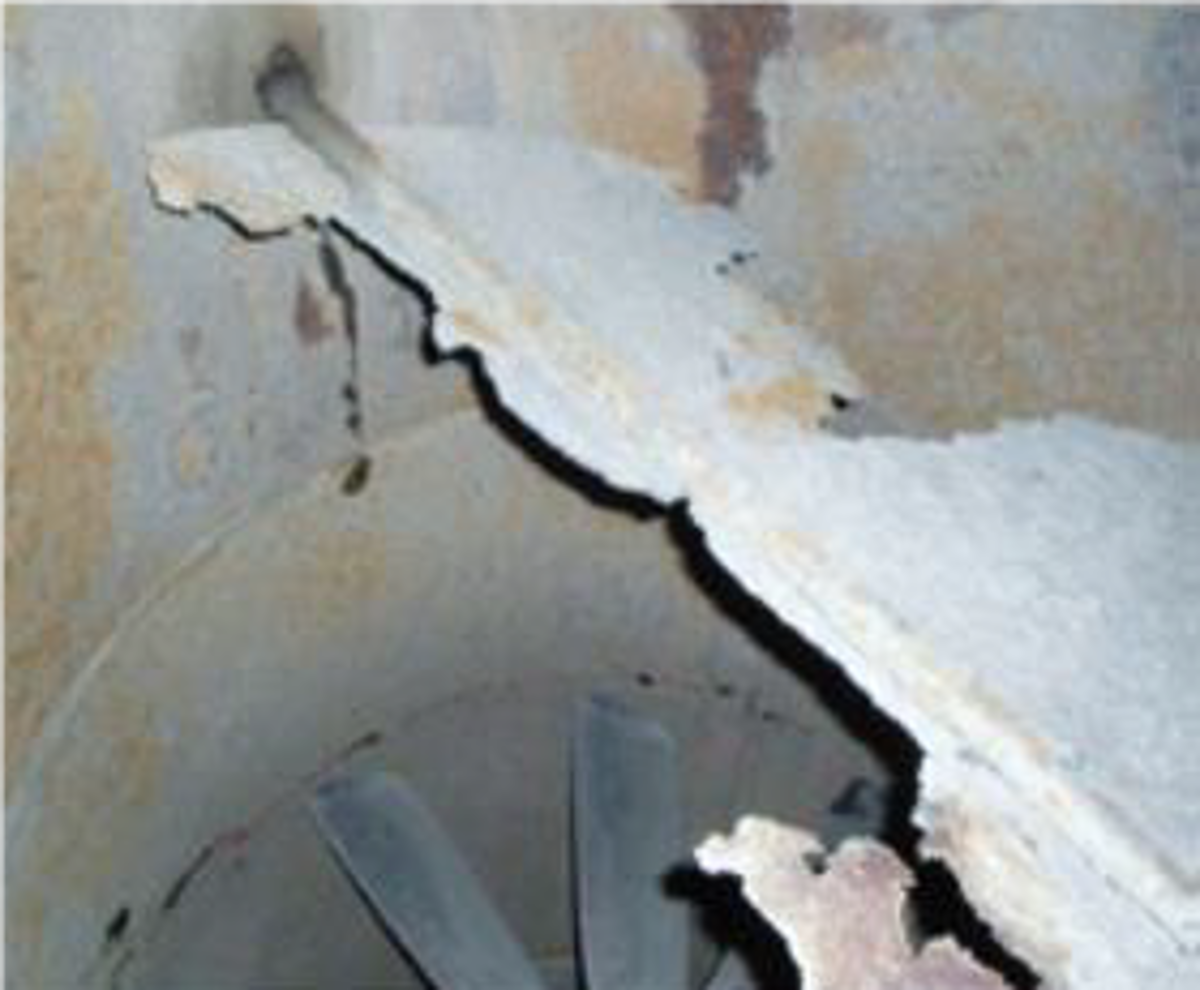

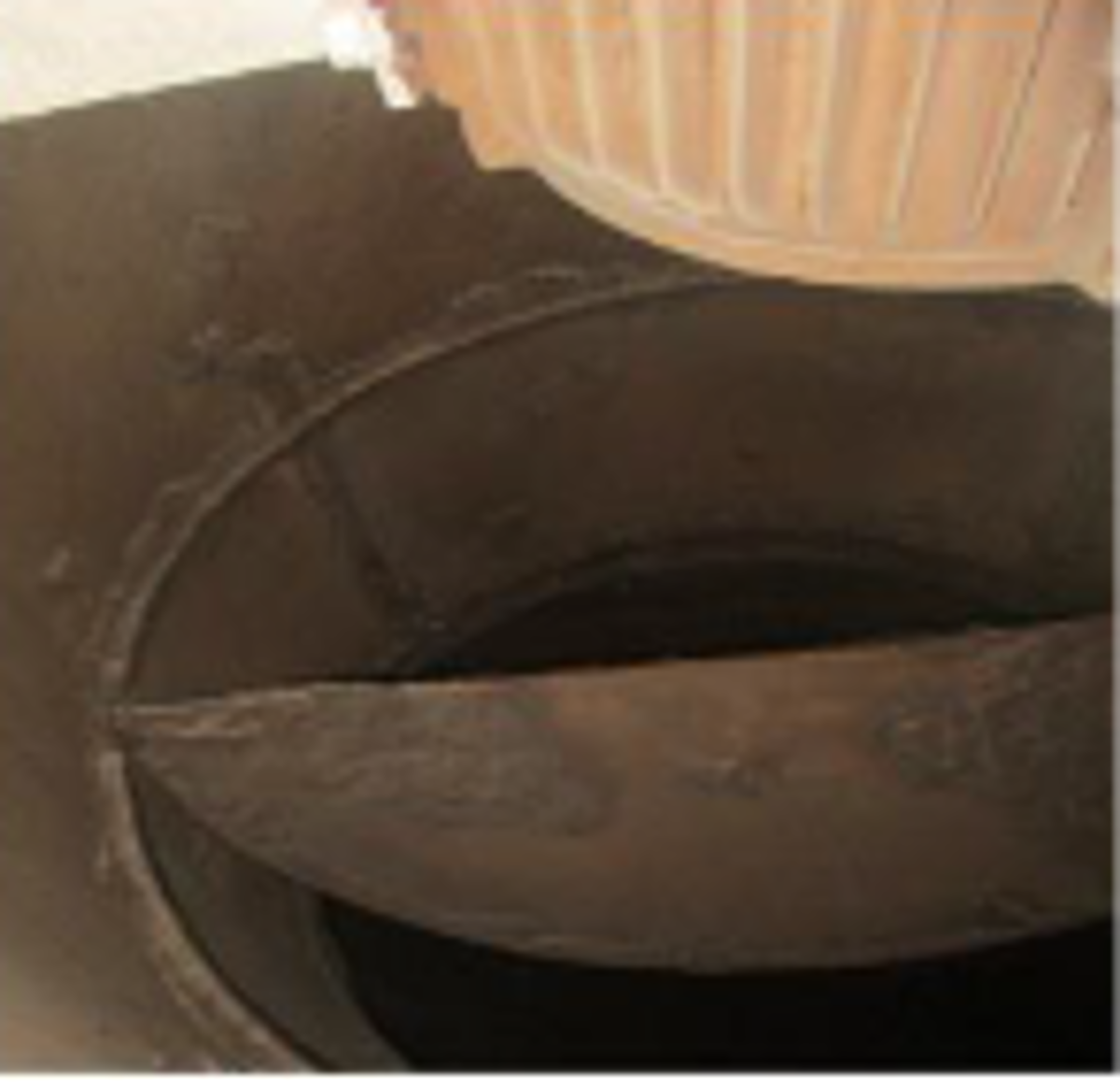

broken flap on engine room fire damper

broken flap on engine room fire damper

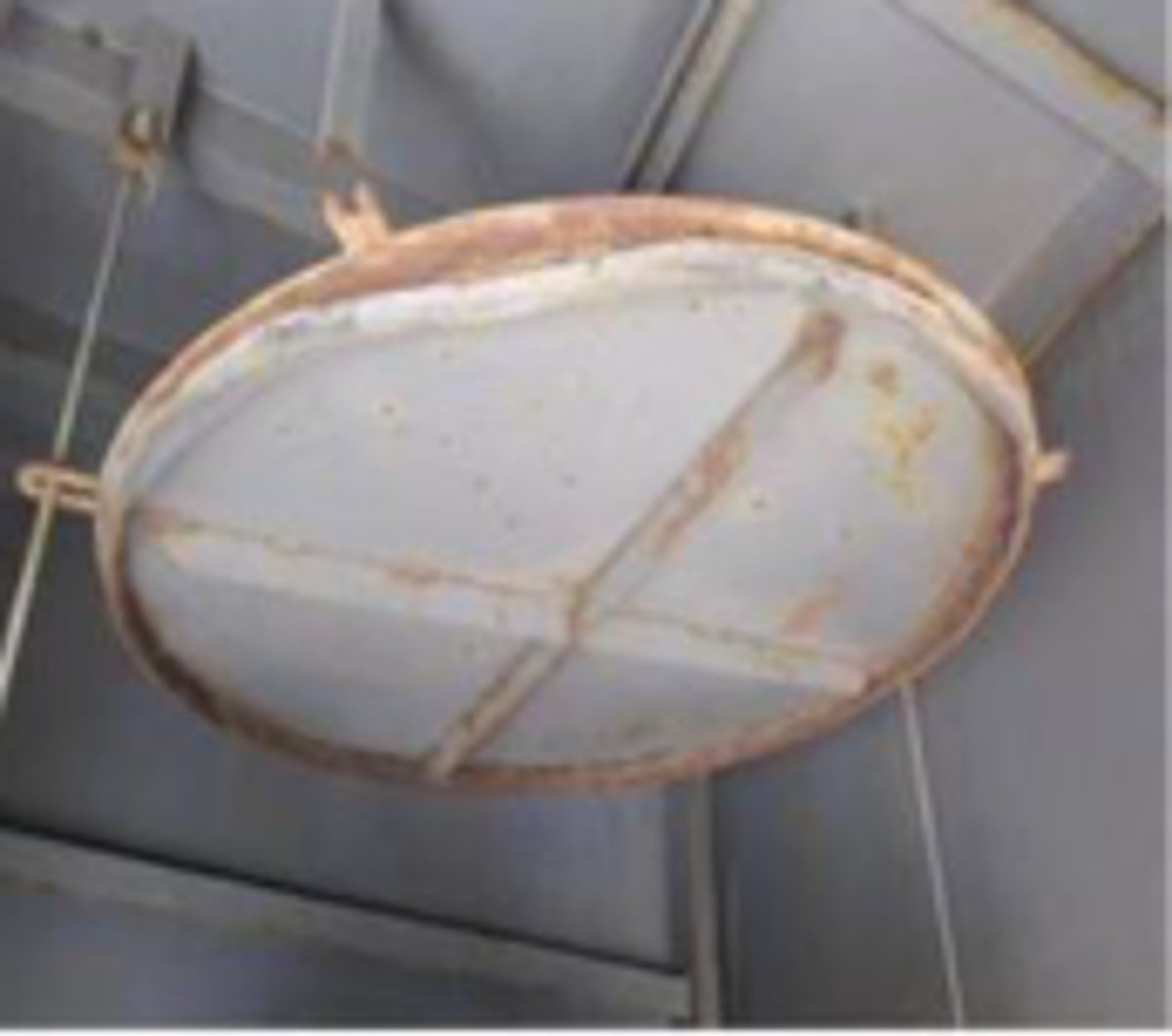

poor sealing of fire damper

poor sealing of fire damper

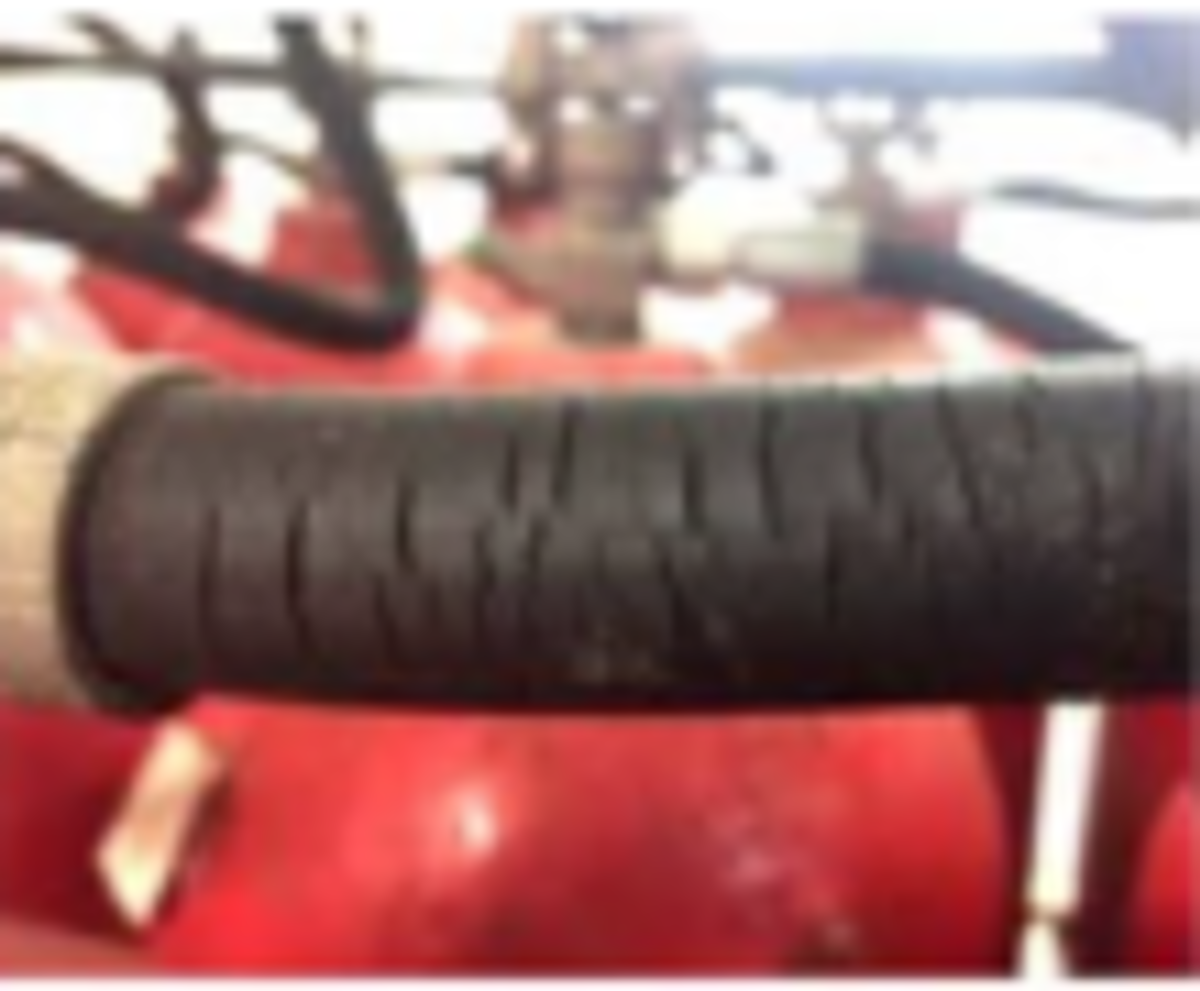

brittle hose on fixed CO2 bottles

brittle hose on fixed CO2 bottles

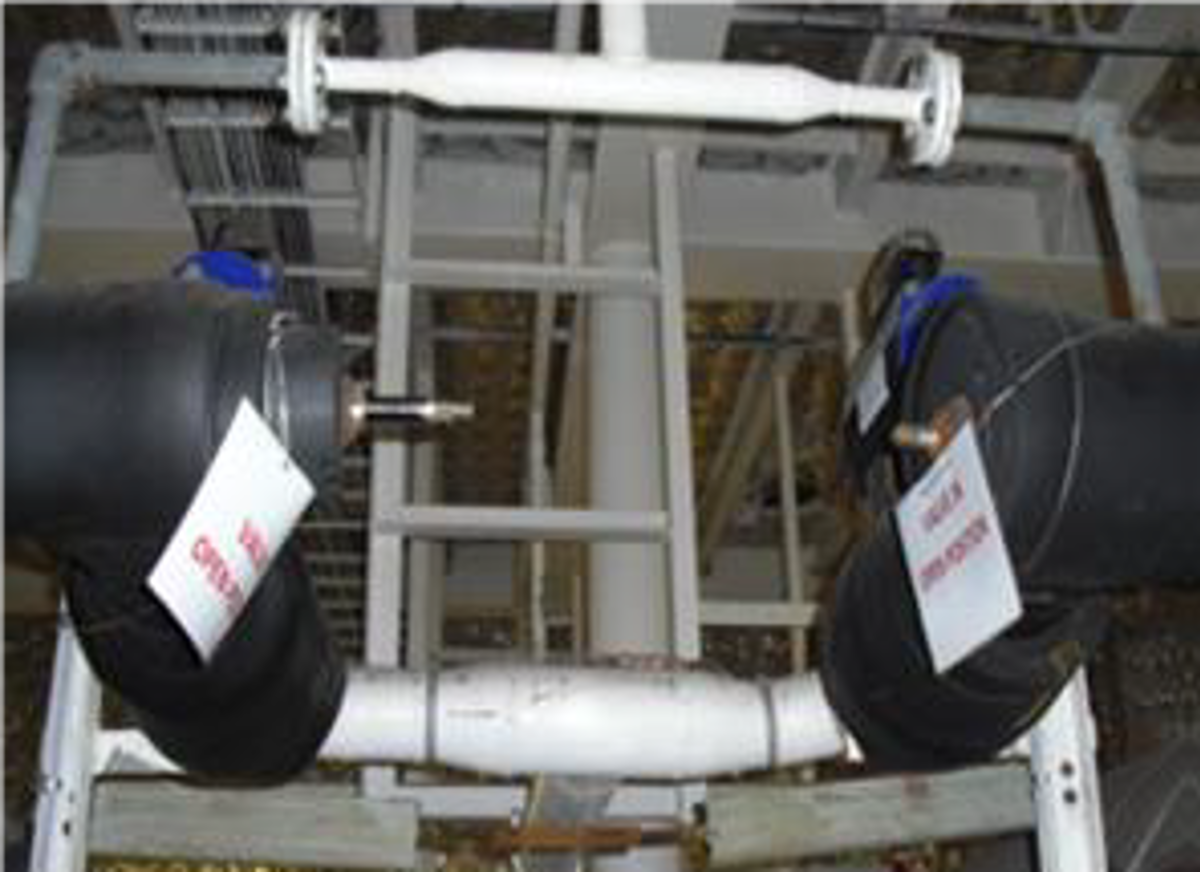

low pressure valves for CO2 system kept closed

low pressure valves for CO2 system kept closed

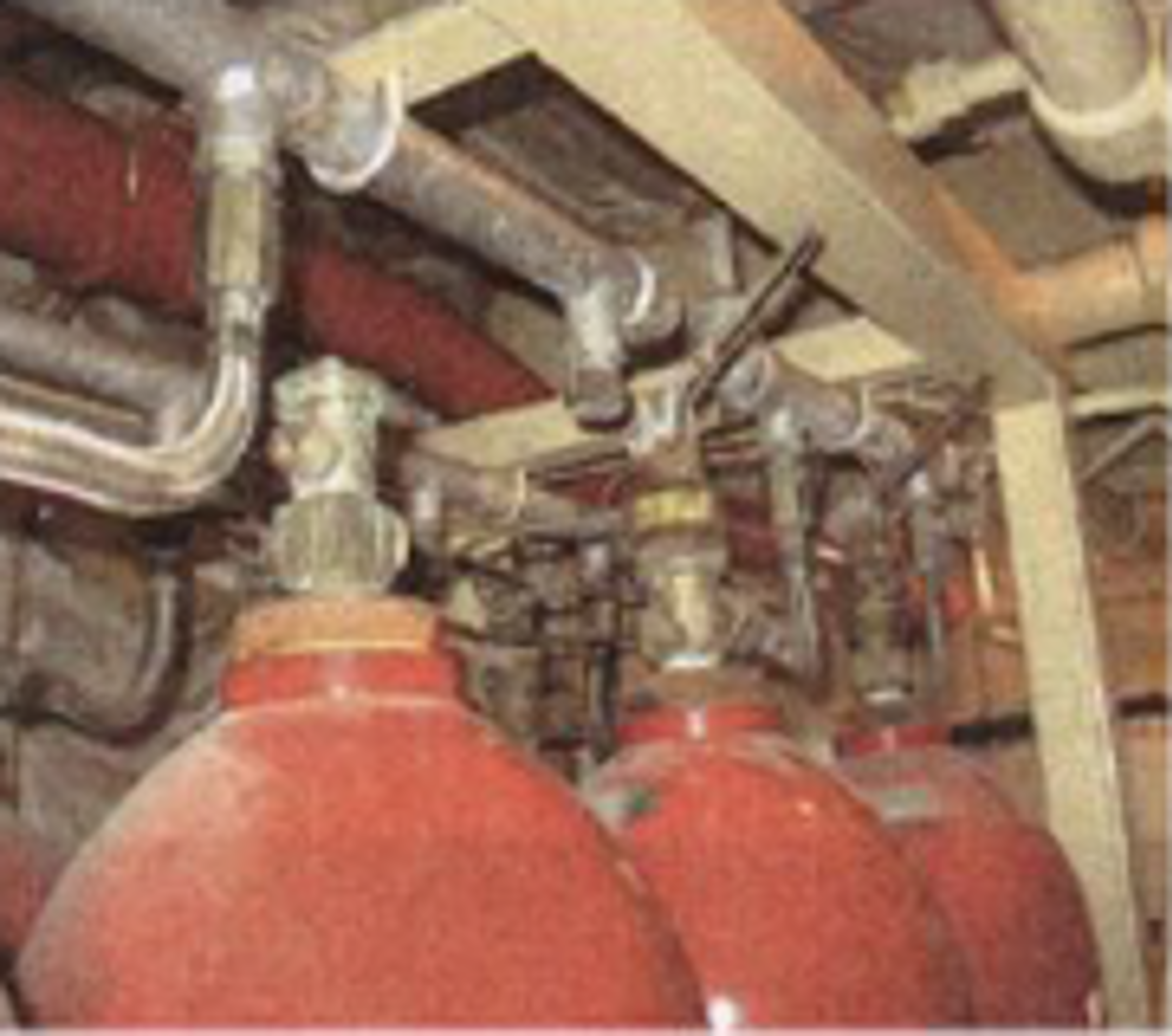

disconnected CO2 bottles

disconnected CO2 bottles

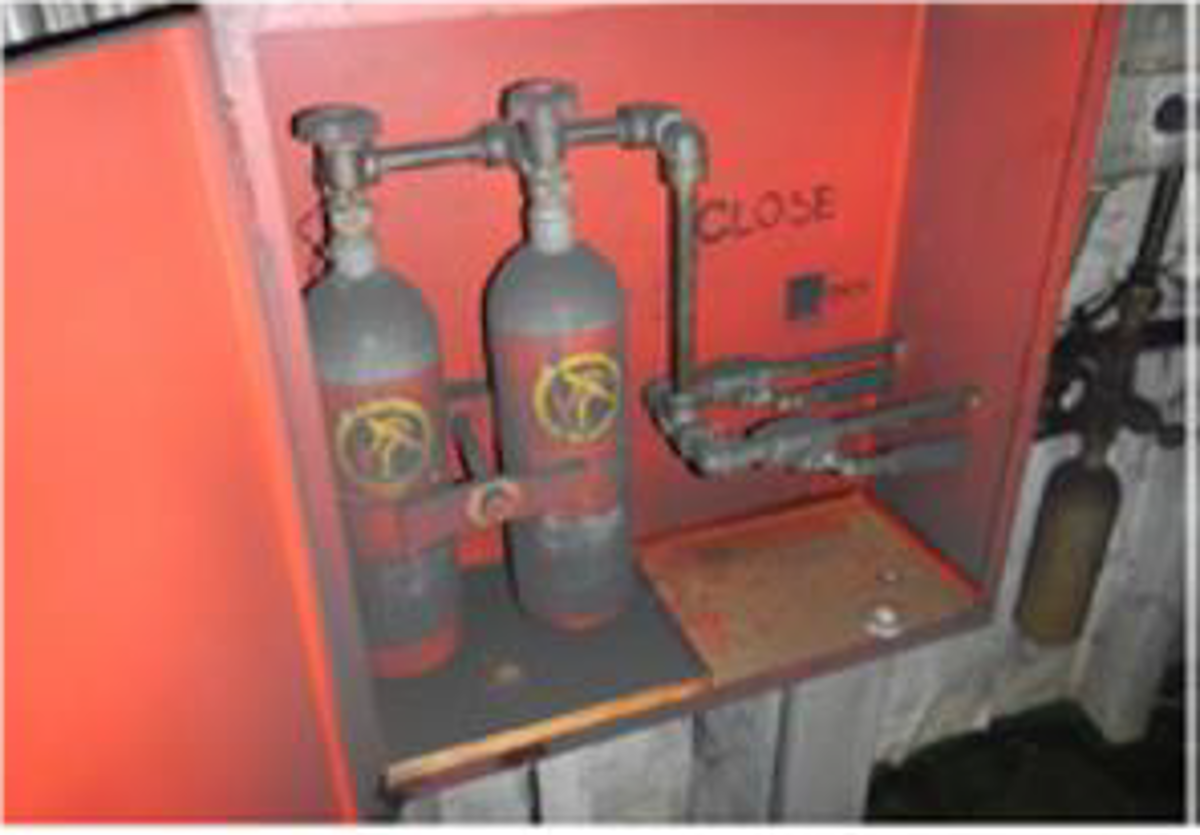

faulty CO2 actuation valves

faulty CO2 actuation valves

What lessons were learned?

  • Check that fire dampers are free of damage and corrosion.

  • Check that fire dampers are clearly marked including open and closed positions.

  • Ensure fire dampers are easy to operate.

  • Ensure flame screens are in good condition.

  • All operating handles, wires and stoppers should be in good working condition.

  • All such equipment should be regularly inspected and maintained as part of a planned maintenance system.

  • Crew should be familiar with the operation of fire dampers and this familiarity should be checked regularly with drills.
