DP2 Service Operations Vessel (SOV)

A DP2 walk to work vessel was operating inside an offshore windfarm manoeuvring into position to permit transfer of people and cargo to a wind turbine  by means of a motion compensated gangway system. The DP current at the time of the event was 1.8 knots – 190 degrees and the wind force was 20 knots – 114 degrees.

All thrusters were selected online and three of four generator were also online, the 4th ready and on standby. There were two separated redundant groups. Two DGNSS, one laser, three gyros, three VRS, and three wind sensors were also online.

Note that the vessel was equipped with the following additional references:

• Taut wire – this was not permitted to be used infield due to placing clump weight on the seabed.
• Acoustic position reference – not permitted to be used due to placing equipment on the seabed.
• Microwave reference – transponders not installed prior to approach due to the impracticalities associated with high number of wind turbines.

During the handover of the watch, the SDPO took control and commenced with the DP handover checklist. The vessel was stopped in all movements, outside the 50m radius – abeam from the wind turbine. The laser position reference sensor was operating and set on a target, but not yet enabled in DP. The SDPO initiated a 20m move in order to move slowly inside the 50m radius of the turbine. On finalising of the six hourly DP handover checklist, the laser position reference was selected to DP. All reference systems were online and were enabled in DP. The laser position reference was set on “auto tilt” and brightness filter at 60%, blanking zones were set.

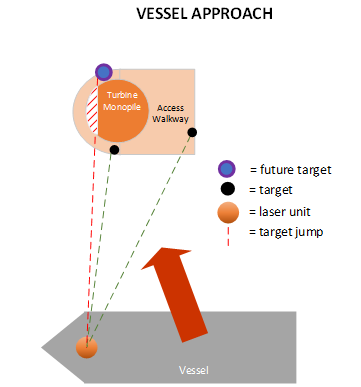

The distance to the tower was 40m when the SDPO commenced a move of the vessel towards the tower in order to get the vessel alongside for walk to work operations. After the move was completed, the SDPO deselected the laser position reference from the DP desk in order to change the laser target.

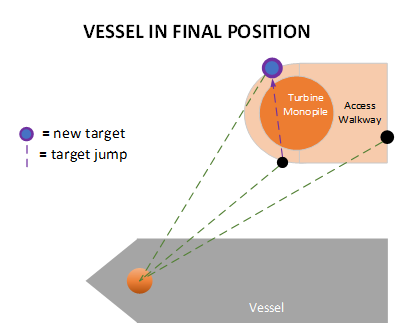

The SDPO changed the selection of the target because it would get obstructed by the railings of the walkway around the turbine when the vessel would move closer. The ‘new’ selected laser target had a clear sight with the laser position reference transponder/receiver unit. Once the laser signal was stable the SDPO enabled it back in DP. Shortly after, the vessel arrived in final position and the SDPO informed the walk to work management team.

When the SDPO was looking to the reference system main view, he saw that the DGNSS were at the bottom on the edge of the median test line and that the laser reference had disappeared from the view (view range set to 5m). At this time, the DP system alarmed, “Reference prediction error Laser”, and, “Reference median deviation laser”. The SDPO informed the walk to work management team to standby. As the SDPO could clearly see that both DGNSS were operating well, he disabled the laser reference from DP. As expected the vessel started to accelerate towards the tower and the SDPO deselected the sway axis to stop the movement towards the wind turbine.

The DPO controlled the vessel’s speed for sway axis with the joystick and moved 10 meters away from the wind turbine. Sway axis was selected on DP again and an assessment was made in order to use the laser reference again. The blanking zones of the laser reference were slightly adjusted, in order to prevent accidently “jumping” onto false targets. After the laser reference looked stable again, it was enabled on DP and the vessel was moved back in position for walk to work operations. Walk to work operations were completed with no further station keeping issues.

During the station keeping event, the maximum position excursion towards the wind turbine was around two meters and heading deviation around two degrees.

This case study demonstrates the importance of careful selection and planning in the use of position reference sensors and the potential consequences therein.
