Incident caused by human factors
- DP Event
- Published on 28 September 2020
- Generated on 22 February 2025
- DPE 03/20
- 1 minute read

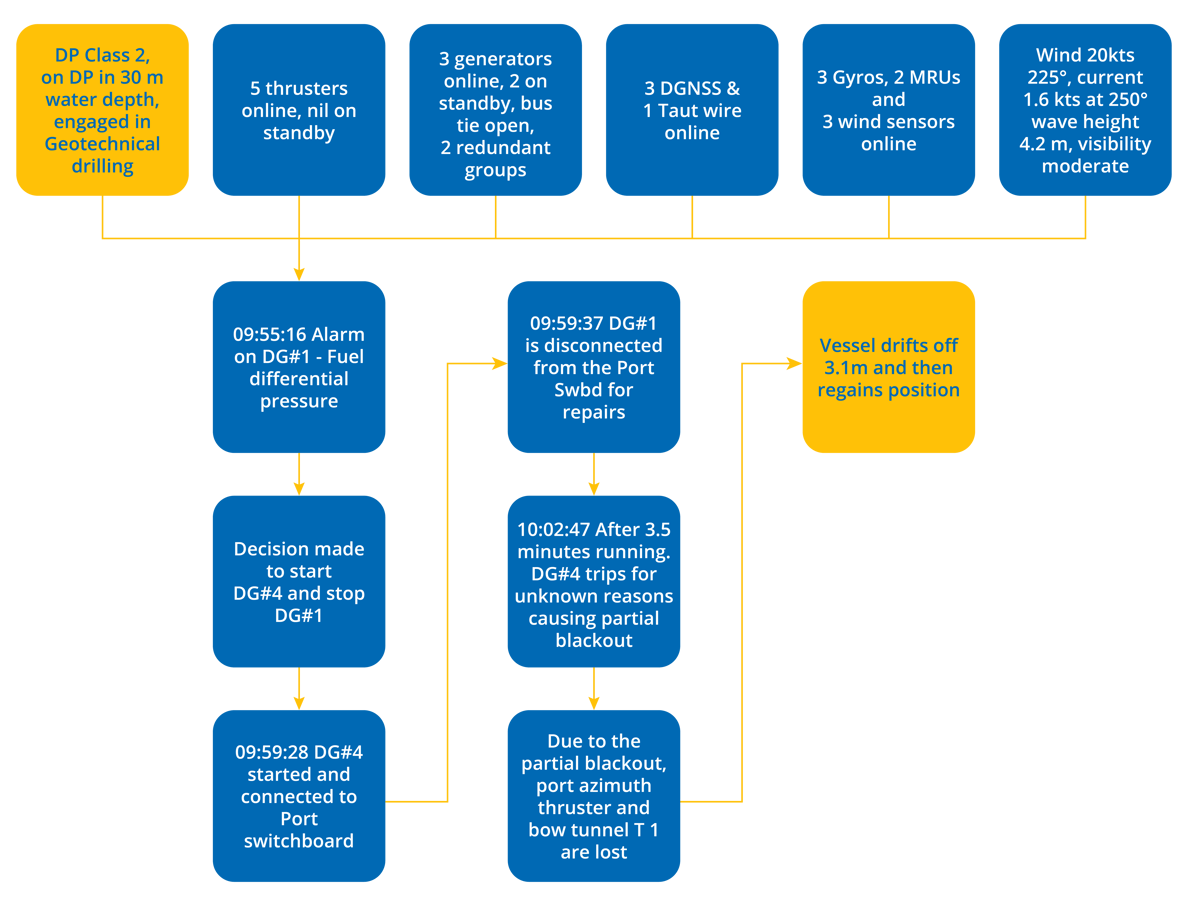

Incident
Complacency or lack of knowledge with DP redundancy was listed as the cause of this incident.
Comments
It is mentioned in the report that DG#4 tripped out for unknown reasons. Elsewhere in the report the cause of this incident is mentioned as complacency or lack of knowledge with DP redundancy concept.
Considerations
- The set-up of the PRS was such that the DGNSS had the majority of the “PRS Weight” calculation in the DP controller, which is not recommendable.
- When a fuel filter differential pressure alarm is received, ensure that the correct procedures for filter changeover and filter replacement are carried out as soon as reasonably practicable. Always ensure that standby diesel generator is checked to ensure continuous service.
- The excursion was 3.1m but it should be noted that this is 10% of the water depth and could have been critical depending on the industrial mission.
- There is no mention of the DP watch circle in the report. It is particularly important that an Activity Specific Operating Guidance (ASOG) document is compiled and utilised for all DP operations, in accordance with IMO Circular 1580, chapter 4, see Operational Activity Planning (IMCA M220).
Latest DP incidents
-
Thorough preparation is key
With 4 of 8 diesel generators running and connected to a closed ring bus, and 7 of the 8 thrusters selected to DP, a DP equipment class 3 MODU was set up in Green mode whilst on standby.
DPE 03/24
5 November 2024
Incident
-
There – but not really there
This DP event occurred on a DP equipment class two supply vessel whilst carrying out cargo operations on the starboard side alongside the asset and working at the lee side in the drift-off position.
DPE 03/24
5 November 2024
Incident
-
Equipment Class 3, even if you operate as 'Class 2'
This case study examines a DP incident on an equipment class 3 multi-purpose vessel while operating in good conditions.
DPE 03/24
5 November 2024
Incident
-
Line of sight
This case study covers events onboard a DP equipment class 2 vessel whilst holding position in a turbine field, with three position reference systems selected into DP – DGPS, HPR and Fanbeam.
DPE 03/24
5 November 2024
Incident
-
DP Drill Scenario
DP emergency drill scenarios are included to assist DP vessel management, DPOs / Engineers, and ETOs in conducting DP drills onboard.
DPE 03/24
5 November 2024
Incident
The case studies and observations above have been compiled from information received by IMCA. All vessel, client, and operational data has been removed from the narrative to ensure anonymity. Case studies are not intended as guidance on the safe conduct of operations, but rather to assist vessel managers, DP operators, and technical crew.
IMCA makes every effort to ensure both the accuracy and reliability of the information, but it is not liable for any guidance and/or recommendation and/or statement herein contained.
Any queries should be directed to DP team at IMCA. Share your DP incidents with IMCA online. Sign-up to receive DP event bulletins straight to your email.
